GI Expanded Metal, Epoxy Coated Steel Expanded, Stainless Steel Expanded Mesh in 304, 304L, 316 and 316L
Dinglian Co. supplies expanded metal, a versatile material created by slitting and stretching sheets of metal. This process forms diamond or other shaped openings, resulting in a lightweight yet strong mesh. Common uses include security fencing, grates, walkways, and architectural facades. Classifications often depend on the metal type (e.g., steel, aluminum), opening size, and thickness.

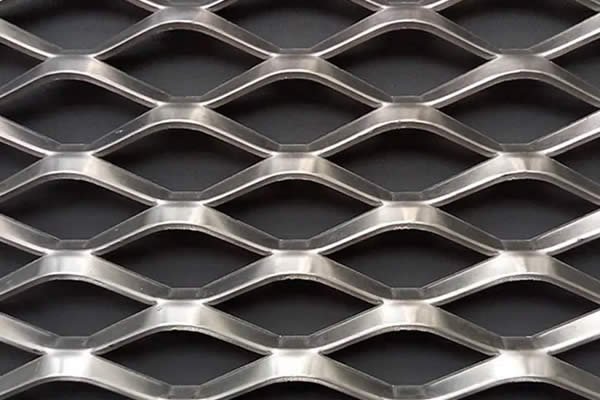

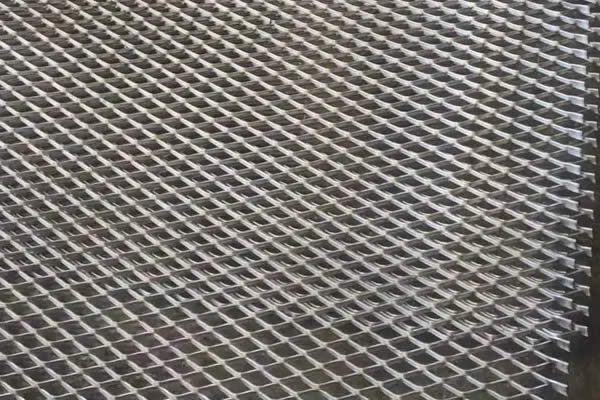

Material Type: Expanded metal is commonly produced from materials like carbon steel (various grades), stainless steel (e.g., 304, 316), and aluminum alloys (e.g., 3003, 5052), each offering distinct strength, corrosion resistance, and weight characteristics for diverse applications.
Sheet Thickness: The gauge or thickness of the original, unexpanded metal sheet significantly impacts the final product's strength and weight, typically ranging from very thin (e.g., 20 gauge) to much thicker (e.g., 1/4 inch) for heavy-duty uses.
Specifications
- Material Thickness Options: Common thicknesses include 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm, 4.0mm, and 6.0mm for steel, aluminum, or stainless steel sheets.
- Standard Mesh Opening Sizes: Diamond-shaped openings are typically 10mm×20mm, 15mm×30mm, 20mm×40mm, 25mm×50mm, 30mm×60mm, and 40mm×80mm.
- Sheet Panel Dimensions: Standard sheet sizes: 1m×2m, 1.2m×2.4m, 1.5m×3m, 2m×3m, and 2m×4m for industrial or architectural use.

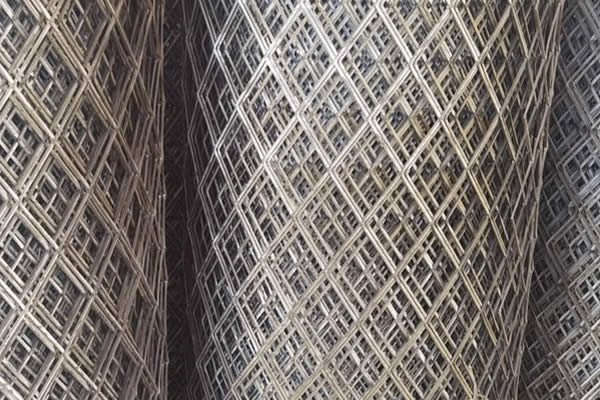

- Surface Coating Types: Options include hot-dip galvanized (275g/m²), PVC-coated (0.5mm), powder-coated, and stainless steel (Grade 304/316).
- Strand Width Specifications: Standard strand widths: 2.0mm, 3.0mm, 4.0mm, 5.0mm, and 6.0mm for varying strength and rigidity.
- Weight Per Square Meter: Typical weights: 2.5kg/m² (0.8mm steel), 4.0kg/m² (1.5mm steel), 6.5kg/m² (3.0mm steel), and 8.0kg/m² (4.0mm steel).
- Common Material Grades: Steel grades: Mild steel (Q235), Galvanized steel (DX51D), Aluminum 5052, and Stainless steel 304/316.
- Open Area Percentages: Standard open areas: 45%, 55%, 60%, and 65%, depending on mesh pattern and strand width.
- Edge Reinforcement Styles: Reinforced edges with flat selvage, knocked-down edges, or hemmed borders for safety and durability.
