Chain Link Fence Specifications: Gauge, Mesh, Height

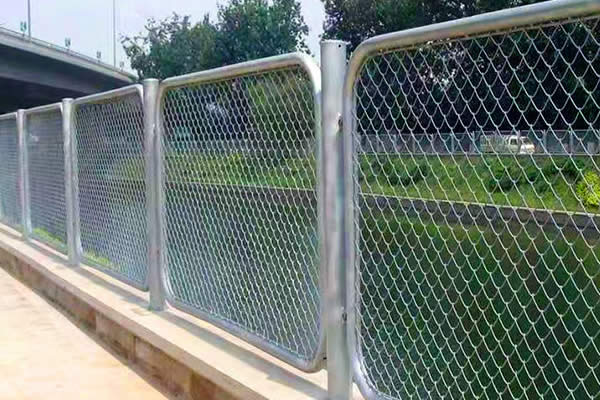

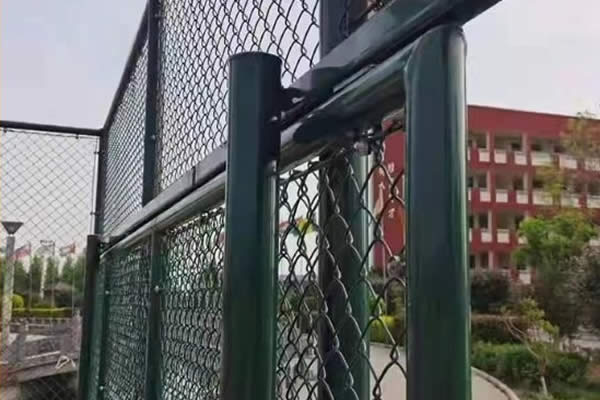

Dinglian Co. supplies Chain Link Fence, a versatile fencing solution constructed from woven steel wires forming a diamond pattern. Its open weave allows visibility and airflow. Common uses include residential boundaries, security enclosures for commercial and industrial properties, sports fields, and animal containment. Classifications often refer to wire gauge (thickness), mesh size (diamond opening), height, and coating (e.g., galvanized or vinyl-coated) for varying strength and corrosion resistance.
Specifications
- Wire Gauge: Typically ranges from 9 to 14 gauge (thicker wire has a lower gauge number), influencing strength and durability.
- Mesh Size: Commonly available in sizes from 1 1/4" to 4", determining the size of the diamond-shaped openings.
- Fence Height: Standard heights range from 3 feet to 12 feet or more, depending on the application and security needs.

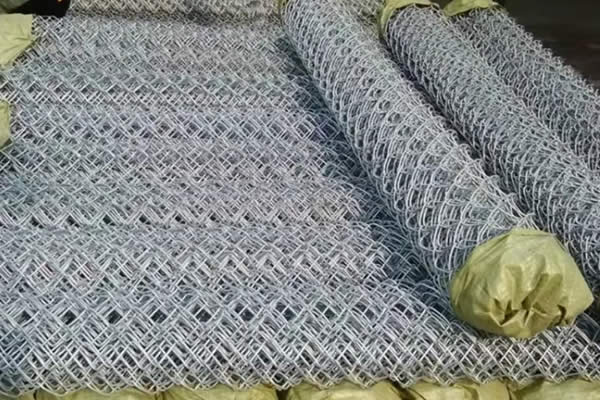

- Roll Length: Standard roll lengths are typically 50 feet, but custom lengths can often be accommodated.

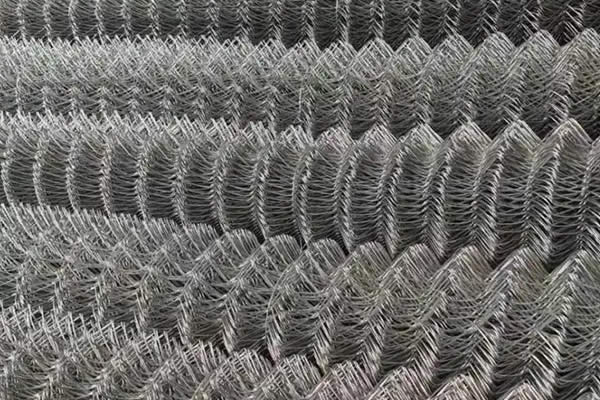

- Coating Type: Options include galvanized steel for corrosion resistance or vinyl coating in various colors for aesthetics and added protection.
- Post Diameter: Line posts commonly range from 1 5/8" to 2 1/2" in diameter, while terminal posts are often larger.
- Post Spacing: Line posts are generally spaced between 6 to 10 feet apart, depending on height and wind load.
- Top Rail Diameter: Top rails, used for added stability, typically range from 1 3/8" to 1 5/8" in diameter.
- Fabric Selvage: Knuckle selvage (bent over) or twist selvage (twisted ends) are common edge finishes for safety and preventing unraveling.
- Tie Wire Gauge: Wire used to attach the fabric to the posts and rails typically ranges from 9 to 12 gauge.
