Checkered Plate in Construction and Industry

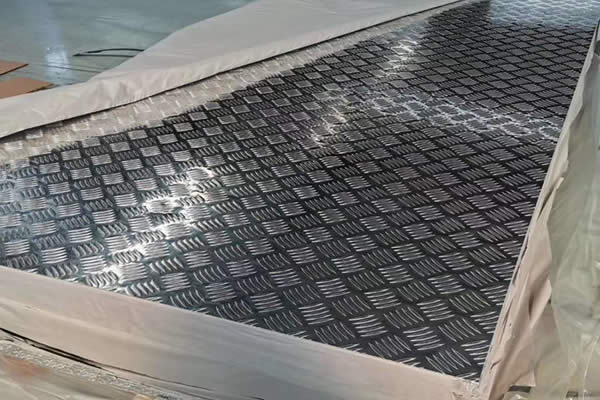

Dinglian Co., supply Checkered Plate, a type of metal plate with a raised diamond or linear pattern on one side. This textured surface provides excellent slip resistance, making it ideal for walkways, stairs, ramps, and flooring in industrial and commercial settings. Common classifications are based on the metal used (e.g., steel, aluminum, stainless steel) and the pattern's size and shape. It is also used for decorative purposes and reinforcement.
Specifications
- Material Types: Commonly manufactured from carbon steel, stainless steel grades (like 304, 316), and aluminum alloys (such as 5052, 6061), each offering distinct strength and corrosion resistance.
- Thickness Range: Typical thicknesses generally range from approximately 1.5 mm (0.06 inches) to 12 mm (0.47 inches), influencing load-bearing capacity and weight.
- Width Options: Standard widths commonly available include 1000 mm (39.37 inches), 1219 mm (48 inches), and 1500 mm (59.06 inches), catering to diverse application needs.
- Length Variations: Standard lengths often include 2000 mm (78.74 inches), 2438 mm (96 inches), 3000 mm (118.11 inches), and sometimes longer, customizable upon request.
- Pattern Height: The raised pattern's height typically varies from approximately 0.8 mm (0.03 inches) to 3 mm (0.12 inches), affecting the level of slip resistance.

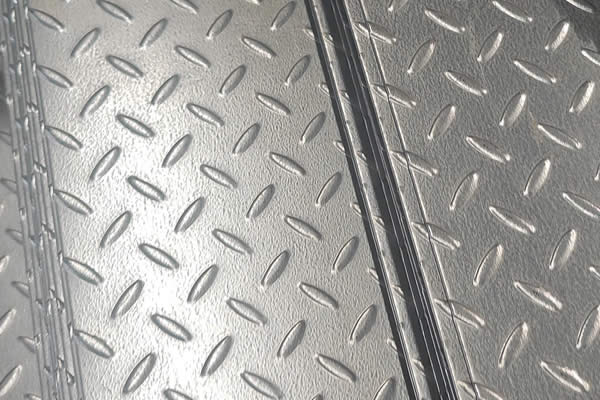

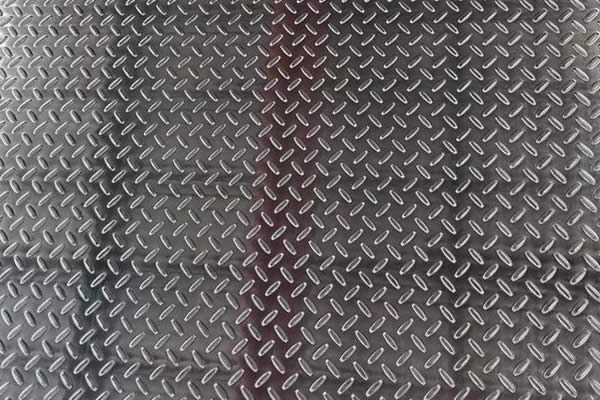

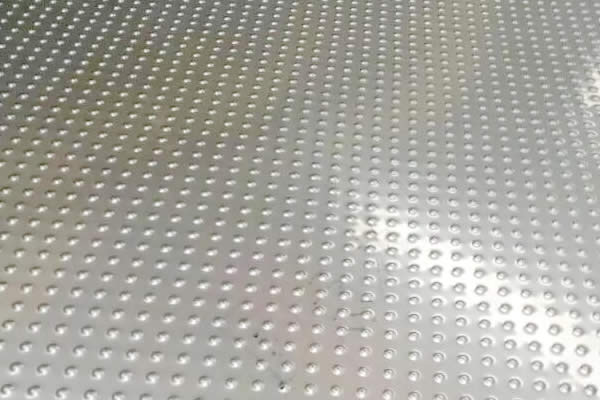

- Pattern Type: Diamond patterns are prevalent, but linear or other geometric designs also exist, each offering a unique aesthetic and grip.
- Plate Weight: Weight varies significantly based on material, thickness, and dimensions, ranging from roughly 10 kg/m² to 100 kg/m² or more.
- Surface Finish: Mill finish is standard, but options like pickled, oiled, or brushed finishes are available depending on the material and application.
- Edge Condition: Edges are typically sheared or mill-cut, with deburring or beveling available as per specific requirements.
- Tolerances: Thickness, width, and length tolerances generally adhere to industry standards like ASTM A480 or equivalent, ensuring dimensional accuracy.
